A comprehensive and flexible multi-format video switcher giving you complete control of video sources, key layers and mixing engine configurations. The V-1200HD introduces a unique flexible hybrid engine with 4:2:2 broadcast switcher and 4:4:4 live event switcher. In addition to powerful video capabilities, the V-1200HD also has a built-in 16-channel audio mixer.
The V-1200HD:
Click image for larger view.Hybrid Engine 2 M/E Switcher and Processor for Broadcast and Live Events
The Roland V-1200HD Multi-Format Video Switcher is a 2 M/E switcher featuring a new 4:2:2 / 4:4:4 Hybrid Engine that combines the features of a production switcher with the power of a presentation switcher. Multiple M/E configurations can be selected from 1 M/E, 1.5 M/E and 2 M/E to meet the needs of your production. Inputs include 10 3G SDI and 4 HDMI with 6 3G-SDI Outputs and 2 HDMI outputs. Scalers on HDMI inputs 3 & 4 and HDMI outputs support SD, HD and VESA resolutions. Switch using the V-1200HDR Control Surface or free downloadable Remote Control Software (RCS). The video inputs and the powerful built-in 16-channel audio mixer can be expanded with XI-Series video and audio expansion cards. An intuitive user interface with assignable cross-points and on screen names ensures maximum flexibility for and live production or broadcast.
2 M/E Mode
This provides a standard 2 M/E operation style. Two keyers can be used with each M/E. Keyer priority can also be assigned and changed. Not only is re-entry of the video source from M/E 1 to M/E 2 possible, but so is reverse re-entry from M/E 2 to M/E 1. Each of the two M/Es can be output independently allowing for applications such as simultaneous transmission of captions in two different languages.
1.5 M/E Mode
This is the highest-performance operation style, capable of using PGM/PST rows as the final stage in addition to 1 M/E. All four keyers can be used in 1 M/E. You can freely change the priority of each keyer, and even copy keyers. This mode enables complex mixing operations such as a video source plus 4-layers of composition and transition functions to another single video source.
1 M/E Mode
This is a simple operation style using 1 M/E + 4 keys. In addition to using PGM/PST rows on the main line, you can use two AUX buses. This mode allows discrete video feeds to be switched and routed to additional outputs making the V-1200HD the ideal primary switcher for a number of broadcast and live performance applications.
4K Switching Mode (future upgrade)
This functions as a 4K/60p routing switcher by combining four SDI inputs or outputs to achieve a single 4K source. Installing an XI-SDI SDI expansion card enables 4K routing of up to three inputs and two outputs.
4:4:4 Multi-Format Processor
There are two scalers between the 4:2:2 engine and the 4:4:4 engine, and two scalers between HDMI IN 3 and 4 and the 4:4:4 engine. These enable switching, self key composition, and matrix output. When using HDMI direct in and out, all processing is done using 4:4:4 10-bit that supports RGB and computer signals.
Processing
An innovative and flexible system designed to easily realize your full creative potential.
Operation
A dedicated V-1200HDR controller provides fast and accurate operation. Dual touch monitors provide quick and easy operation.
All the functionality required for operation of a high-end switcher, in an efficient compact size.
Hardware
Multi-format support for a diverse range of inputs and outputs. Two expansion slots are provided for even more compatibility.
Applications
The flexible workflow and functionality supports a wide variety of live production applications.
Broadcast Studios
A wide variety of video effects enhances broadcast studio productions. Composition with freely selectable priority can be accomplished using the four scaler-equipped keyers. The system also features high-end Chroma Key, as well as the External Key essential for title compositing. In addition to PGM and PVW output, two AUX buses are usable for output (when in the 1M/E mode).
Live-performance Production
Multiple M/E choices allow for a diverse range of video production applications in one switcher. The V-1200HD is ideal as a main switcher for concert recording and for a live feed. Through a variety of multi-view functions, even a large number of sources can be checked at a glance. The M/E configuration can be varied as desired to meet the needs of the production. Control up to four remote cameras, ensures creative productions even with limited camera operators.
Live Events
Equipped with HDMI input and output with multi-format support. Freely mix computer and video sources and output to a wide range of displays and devices. Along with ten SD/HD-SDI inputs, the V-1200HD features four HDMI inputs. Six SD/HD-SDI and two HDMI outputs are also provided. Among these, the two HDMI inputs and outputs offer multi-format support. Computer sources with varying resolutions and frame rates are supported without a need for video converters. The signal is passed directly to the 4:4:4 process, so it can be output, unchanged, at the same high resolution. What's more, using an XI expansion card with a built-in scaler makes it possible to mix digital and analog inputs and outputs.
Performance Hall Equipment
Supporting a rich range of control as a video/audio hub. The full-featured routing functionality enables conversion and distribution of a high number of video sources in a variety of formats. The V-1200HD can also achieve remote operation as a video/audio source hub from a variety of control terminals and programs. In addition to just simple video switching, the system also offers functions available only on production switchers, such as distributing PinP video to various locations.
| VIDEO | |
| Processing | 4: 4: 4 (Y/Pb/Pr / RGB), 10-bit / 4: 2: 2 (Y/Pb/Pr), 10-bit |

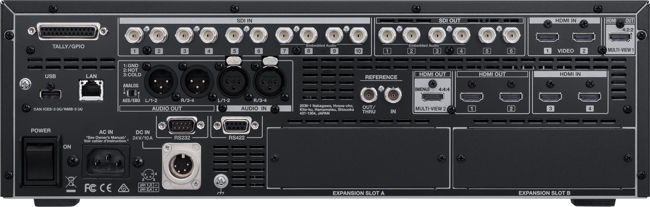

| Input Connectors | 3G/HD/SD-SDI: BNC type x 10 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C HDMI: type A x 2 (HDMI INPUT 1--2) * HDCP Not supported HDMI: type A x 2 (HDMI INPUT 3--4) * HDCP Supported., Multi-format Supported. |
| Output Connectors | 3G/HD/SD-SDI: BNC type x 6 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C HDMI: type A x 2 (HDMI OUTPUT 1--2) * HDCP Supported HDMI: type A x 2 (HDMI OUTPUT MULTI-VIEW 1 * HDCP Not required, 1080/59.94p) (HDMI OUTPUT MULTI-VIEW 2 * HDCP Required, 1080/59.94p) |
| Formats | SDI: 480/59.94i, 576/50i, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p * Conforms to SMPTE 274M, SMPTE 296M, ITU-R BT.601-5 HDMI: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,1024x768/60*1, 1280x720/60*1, 1280x800/60*1, 1366x768/60*1, 1280x1024/60*1, 1400x1050/60,1600x1200/60, 1920x1080/60, 1920x1200/60 * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11 * The output format of HDMI1,2 and SDI is always the same. * 1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz. Frame rate: 59.94 (NTSC) or 50 (PAL) MULTI-VIEW 1--2: 1080/59.94p |
| Effects (4:2:2 Processing) |
M/E: 1 M/E, 1.5 M/E, 2 M/E (9 patterns) Transition: Mix, NAM* , FAM* , Cut, Wipe, Slide*, Squeeze* * PGM/PST only Composition (Keyer): 4 channels * The number of composition depends on M/E, PinP, Chroma Key, Luminance Key, External Key supported AUX: 2 * The number of AUX depends on M/E Others: Output Fade, Freeze, Capture, Composition Edit, SDI Output Patchbay |
| Patchbay Effects (4:4:4 Processing) |
M/E: 1 M/E, Matrix, Scaler Input: 4 (4:2:2 Processing outputs x 2, HDMI INPUT 3, HDMI INPUT 4)* Transition: Mix, Cut* Keyer: Luminance Key (1 M/E)* Others: HDCP Supported, Output Fade, Output Cropping, Signal Generator* * The function depends on M/E |
| Still Image | Still Image Inputs: 2, Internal Memory: 16, Maximum 1920x1080 pixels Format: Windows Bitmap File (.bmp ) 24 bit per pixel, uncompressed, Portable Network Graphic File (.png) * Alpha channel Supported. |
| Multiviewer | MULTI-VIEW 1 (4:2:2 Processing): 16/10 screens, Audio Level, Label, Tally * HDCP Not required MULTI-VIEW 2 (4:4:4 Processing): 4 screens, Audio Level, Label, Tally, OSD Setup Menu * HDCP Required |
| Proc. Amp. | Equipped with all inputs |
| AUDIO | |
| Processing | Sampling Rate : 24 bits/48 kHz |
| Input Connectors | 3G/HD/SD-SDI: BNC type x 4 (Ch7-10), HDMI x 4, AUDIO IN (XLR/TRS) L (1/2),R (3/4) * Analog Audio or AES/EBU |
| Output Connectors | 3G/HD/SD-SDI: BNC type x 4 (Ch1-4), HDMI x 2, AUDIO OUT (XLR/TRS) L (1/2),R (3/4) * Analog Audio or AES/EBU |
| Input Level and Impedance | AUDIO IN: -68--+4dBu (Maximum: +22dBu, 4k ohms) |
| Output Level and Impedance | AUDIO OUT: +4dBu (Maximum: +22dBu, 600 ohms) |
| Formats | SDI: Linear PCM, 24bits, 48kHz, 16ch * Conforms to SMPTE 299M, SMPTE272M-C HDMI: Linear PCM, 24bits, 48kHz, 2ch AES/EBU: Linear PCM, 24bits, 48kHz, 4ch |
| Effects | Patchbay: 92 inputs x 92 outputs Delay: 16ch Mixer: 16ch, channel Effects: 3-Band EQ, Delay Master Effects: Mastering, 3-Band EQ, Reverb |
| OTHERS | |
| Expansion Slot | Slot: 2, Internal video bus: Input 2, Output 2 / Internal audio bus: Input 16ch, Output 16ch * 2 slots total |
| Phase adjustment | ±1080 Lines |
| Reference | Input: BNC type x 1 Output/Through: BNC type x 1 * Black Burst (Sync to frames), Bi-Level, Tri-Level * Through when using an Input. |
| External Connectors | RS-232: D-Sub 9 pin type x 1 * for Remote Control * 9600/38400bps, Data 8bit, Stop 1bit, Parity None, Flow XON/XOFF, ASCII Code Set RS-422: D-Sub 9 pin type x 1 * for VISCA Control TALLY/GPIO: D-sub 25 pin type x 1 (Input: 8, Output: 16) LAN: RJ45 100Base-TX (Connect to V-1200HDR or Computer (V-1200HDRCS)), Maximum: V-1200HDR or V-1200HDRCS x 2 USB: A type x 2 USB Memory / Use for future expansion |
| Memory | 8 * Last Memory Function |
| User Function Button | 32 * 16 buttons x 2 banks |
| Remote Camera Control | RS-422: D-Sub 9 pin type x 1 Protocol: VISCA * 9600/38400bps, Data 8bit, Stop 1bit, Parity None, Flow None, Maximum: 7 Units |
| Remote Controller | V-1200HDR Control Surface * Option V-1200HD RCS * Windows7 or later / Mac OSX |
| Power Supply | AC 100V, DC 24V/10A (XLR-4-32 type) * Redundant Power Supply * 240W |
| Operation Temperature | +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit |
| Dimensions | Width: 430 mm / Depth: 357 mm / Height: 132.5 mm * EIA-3U rack mount size |
| Weight | 9.0 kg |
| Accessories | Power Cord, Rack Mount Angle (2), Input Template, Owner's Manual |
